Common VW Polo BAH 1.6 Engine Problems: Causes, Symptoms, Solutions

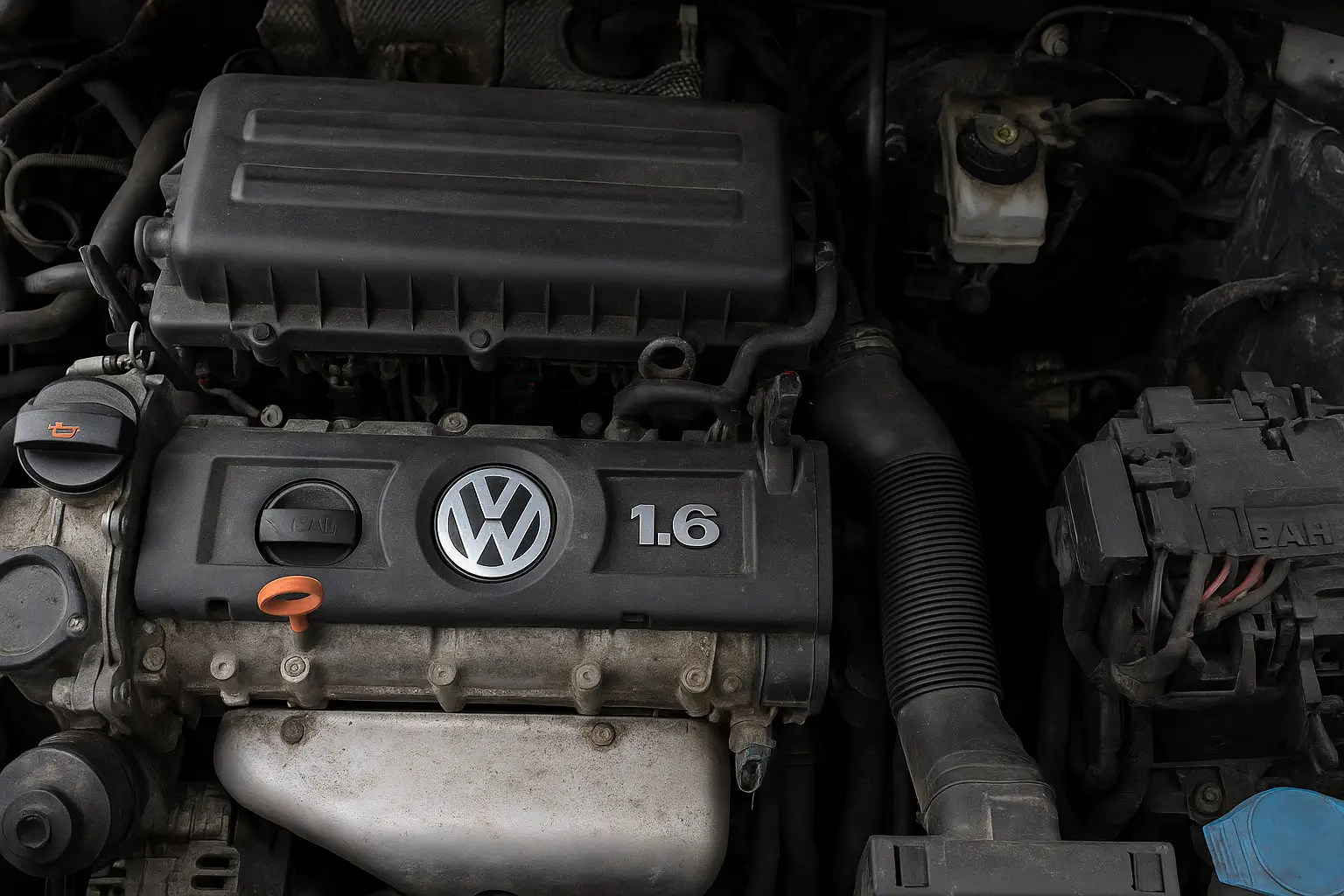

The Volkswagen Polo with the BAH 1.6 8V engine, commonly found in models from 2003-2008, is a popular compact car known for its reliability and fuel efficiency. However, like any engine, the BAH 1.6 can develop specific issues over time. This comprehensive guide examines the most frequent problems, their causes, symptoms, and solutions to help you maintain your vehicle’s performance and avoid costly repairs.

BAH Engine Specifications

Before diving into common problems, let’s understand the basic specifications of the VW Polo BAH engine:

Specification	Details
Engine Code	BAH
Displacement	1.6L (1600cc)
Configuration	Four-cylinder, naturally aspirated
Fuel Type	Petrol
Vehicle Application	VW Polo 9N (2003-2009), both hatchback and sedan variants
Oil Capacity	3.7 liters (with filter change)
Recommended Oil	SAE 5W-30 (VW 504.00) or SAE 0W-30 (VW 504.00 Longlife) Older models: SAE 5W-40 (VW 502.00)

1. Engine Misfires

Causes

• Worn or fouled spark plugs
• Faulty ignition coils
• Damaged spark plug leads
• Burnt valves (particularly on cylinder #3 and #4)
• Failing crankshaft position sensor
• Valve seal leakage causing oil on spark plugs

Symptoms

• Rough idling or stalling
• Poor acceleration and power loss
• Engine “missing” or “skipping beats”
• Check engine light illumination
• Oil on spark plugs
• No change in engine performance when a specific spark plug wire is disconnected

Solution

• Replace spark plugs (NGK BKUR5ETC-10 recommended specifically for BAH engines)
• Replace spark plug leads (sometimes removing metal covering solves the issue)
• Check and replace ignition coils if necessary
• Compression test to identify valve issues
• Cylinder head overhaul for burnt valves
• Clean or replace injectors

Costs

• Spark plugs: R400-R800
• Spark plug leads: R600-R1,500
• Ignition coil: R800-R2,000
• Valve repair/replacement: R5,000-R8,000
• Cylinder head overhaul: R7,000-R12,000

DIY Difficulty / Hours

• Spark plug replacement: Easy / 0.5-1 hour
• Spark plug leads replacement: Easy / 0.5-1 hour
• Ignition coil replacement: Easy to Moderate / 1 hour
• Compression testing: Moderate / 1-2 hours
• Valve work: Difficult / 8-12 hours

[Back to top ↑]

2. Starting Issues

Causes

• Cold start enrichment problems
• Faulty coolant temperature sensor
• Fuel pressure issues
• Crank position sensor faults
• Fuel pump problems
• Battery or starter motor issues

Symptoms

• Engine requires multiple attempts to start, especially when cold
• Vehicle starts fine when warm but struggles when cold
• Intermittent starting problems
• Engine cranks but doesn’t fire
• First start of the day consistently problematic

Solution

• Replace coolant temperature sensor
• Check and replace crank position sensor
• Verify fuel pressure and replace pump if necessary
• Inspect fuel filter and replace if clogged
• Check starter motor and battery health

Costs

• Coolant temperature sensor: R300-R800
• Crank position sensor: R800-R2,000
• Fuel pump: R2,000-R4,500
• Fuel filter: R300-R600
• Battery: R1,000-R2,500

DIY Difficulty / Hours

• Coolant temperature sensor: Easy / 0.5-1 hour
• Crank position sensor: Moderate / 1-2 hours
• Fuel filter: Easy to Moderate / 1 hour
• Fuel pump: Moderate to Difficult / 2-4 hours
• Battery replacement: Easy / 0.5 hour

[Back to top ↑]

3. Rough Idle Problems

Causes

• Air leaks in the intake system (most common cause)
• Clogged crankcase breather
• Carbon buildup in throttle body
• Faulty idle control valve
• EGR valve issues
• Incorrect ignition timing
• Worn spark plugs or leads

Symptoms

• Unstable or fluctuating idle speed
• Engine “skipping heartbeats” at idle
• Stalling at stops
• Idle problems worsening after highway driving
• Engine hunts between high and low RPM

Solution

• Check and repair intake air leaks
• Clean or replace crankcase breather
• Clean throttle body
• Verify and adjust ignition timing
• Replace spark plugs and leads
• Check EGR valve operation

Costs

• Intake air leak repair: R500-R1,500
• Crankcase breather: R300-R800
• Throttle body cleaning: R600-R1,200
• EGR valve replacement: R1,500-R3,000
• Professional timing adjustment: R500-R1,000

DIY Difficulty / Hours

• Air leak detection: Moderate / 1-2 hours
• Throttle body cleaning: Easy to Moderate / 1-2 hours
• Breather cleaning/replacement: Moderate / 1-2 hours
• EGR valve replacement: Moderate / 1-2 hours

[Back to top ↑]

4. Power Loss Issues

Causes

• Clogged fuel filter
• Failing fuel pump
• Dirty or malfunctioning injectors
• Air intake restrictions
• Catalytic converter blockage
• Low compression (worn valves or piston rings)
• Control module communication problems

Symptoms

• Reduced acceleration and poor performance
• Engine hesitation
• Power loss when engine reaches operating temperature
• Poor fuel economy
• Vehicle feels underpowered compared to normal

Solution

• Replace fuel filter
• Test and replace fuel pump if necessary
• Clean or replace fuel injectors
• Check air filter and intake system
• Test exhaust back pressure and catalytic converter
• Perform compression test to check for internal engine issues
• Scan for ECU fault codes

Costs

• Fuel filter replacement: R300-R600
• Fuel pump replacement: R2,000-R4,000
• Fuel injector cleaning/replacement: R1,200-R5,000
• Air filter replacement: R200-R500
• Compression test: R500-R1,000

DIY Difficulty / Hours

• Fuel filter replacement: Easy to Moderate / 1 hour
• Air filter replacement: Easy / 0.5 hour
• Fuel injector cleaning: Moderate / 2-3 hours
• Compression testing: Moderate / 1-2 hours

[Back to top ↑]

5. Oil System Problems

Causes

• Oil pump failures (particularly common in BAH engines)
• Clogged oil galleries and passages
• Oil strainer blockages
• Leaking valve seals
• Rear main seal issues
• Hardened oil causing blockages after overheating

Symptoms

• Oil warning light
• Low oil pressure
• Oil leaks
• Oil on spark plugs
• Blue smoke from exhaust
• Engine overheating

Solution

• Replace oil pump
• Clean oil galleries and passages
• Replace oil strainer
• Replace valve seals
• Change oil and filter more frequently
• Use correct oil viscosity

Costs

• Oil pump replacement: R1,500-R3,000
• Oil system cleaning: R1,500-R3,000
• Valve seal replacement: R4,000-R8,000
• Rear main seal replacement: R3,500-R6,000

DIY Difficulty / Hours

• Oil and filter change: Easy / 1 hour
• Oil pump replacement: Difficult / 4-8 hours
• Oil gallery cleaning: Very Difficult / 6-10 hours
• Valve seal replacement: Very Difficult / 8-12 hours

[Back to top ↑]

6. Timing Belt Failures

Causes

• Worn timing belt
• Failed tensioner
• Incorrect timing belt installation
• Poor quality replacement parts
• Exceeding recommended replacement intervals

Symptoms

• Engine knocking noises
• Bent valves (most common after timing belt failure)
• Sudden loss of power
• Engine won’t start after timing belt replacement
• Poor running after timing belt service

Solution

• Replace timing belt and tensioner at recommended intervals
• Use high-quality OEM or equivalent parts
• Ensure correct tension and alignment during installation
• Replace water pump during timing belt service
• If failure occurs, inspect for bent valves

Costs

• Timing belt and tensioner kit: R2,000-R4,000
• Labor for replacement: R2,000-R4,000
• Valve replacement after timing belt failure: R6,000-R15,000
• Complete cylinder head rebuild: R10,000-R15,000

DIY Difficulty / Hours

• Timing belt replacement: Difficult / 4-6 hours
• Valve replacement: Very Difficult / 8-12 hours
• Requires specialized tools and technical knowledge

[Back to top ↑]

7. Air Intake Leak Issues

Causes

• Cracked or perished intake hoses
• Loose connections
• Vacuum line leaks
• Damaged intake manifold gaskets
• EGR valve gasket failures

Symptoms

• Erratic idle
• Whistling sound under acceleration
• Poor fuel economy
• Engine stalling
• Check engine light

Solution

• Inspect all intake hoses and connections
• Smoke test to identify leak locations
• Replace damaged hoses, gaskets, and connections
• Check and replace vacuum lines
• Use proper torque when tightening intake components

Costs

• Intake hose replacement: R500-R1,200
• Vacuum line kit: R300-R600
• Intake manifold gasket: R800-R2,000
• Smoke test diagnostic: R600-R1,200

DIY Difficulty / Hours

• Hose inspection and replacement: Easy to Moderate / 1-2 hours
• Vacuum line replacement: Moderate / 1-3 hours
• Intake manifold gasket replacement: Difficult / 3-5 hours

[Back to top ↑]

Torque Specifications

When working on your VW Polo BAH engine, using the correct torque settings is critical for proper function and preventing damage. Here are the recommended torque specifications:

Component	Torque Setting
M6 bolts/nuts	10 Nm
M8 bolts/nuts	20 Nm
M10 bolts/nuts	45 Nm
M12 bolts/nuts	60 Nm
Exhaust pipe to manifold	40 Nm
Cylinder head bolts	Follow specific sequence (see service manual)
Camshaft bearing caps	20 Nm
Crankshaft pulley bolt	120 Nm + 90° turn

Source: fixya.com

Preventative Maintenance Tips

To avoid many of these common problems with the VW Polo BAH 1.6 engine, follow these maintenance recommendations:

Regular Service Schedule

Service Type	Interval	Components
Oil Change	Every 7,500-10,000 km	Oil and filter replacement
Intermediate Service	Every 30,000-60,000 km	Air filter, cabin filter, spark plugs
Major Service	Every 60,000-90,000 km	All filters, spark plugs, timing belt, fluids

Source: aspiremotor.com

Critical Maintenance Items

• Regular Oil Changes: Every 7,500-10,000 km using the manufacturer recommended grade (5W-30 or 5W-40 meeting VW specs)
• Air Filter Checks: Inspect every 15,000 km, replace as needed
• Spark Plug Replacement: Every 30,000 km (use NGK BKUR5ETC-10 for best results)
• Spark Plug Lead Inspection: Check for damage every 30,000 km
• Timing Belt Replacement: Every 60,000 km or 4 years, whichever comes first
• Coolant Change: Every 60,000 km or 2 years
• Throttle Body Cleaning: Every 30,000 km to prevent carbon buildup
• Fuel Filter Replacement: Every 30,000 km
• Check for air leaks: Inspect the intake system regularly, as it’s a common source of problems

Following these maintenance schedules can help extend the life of your VW Polo BAH 1.6 engine and avoid costly repairs. When properly maintained, these engines can last 200,000-250,000 km before requiring major overhaul.

Conclusion

The Volkswagen Polo BAH 1.6 8V engine has established itself as a generally reliable powerplant, but it does have its share of common issues that owners should be aware of. The most prevalent problems include cylinder misfires (particularly cylinders #3 and #4), starting difficulties, rough idle, and oil system issues.

Regular maintenance remains the best defense against these problems, with particular attention needed for air intake system integrity, ignition components, and timing belt condition. By recognizing the early warning signs of these common issues, owners can address problems before they escalate into major repairs.

While some of these problems may seem daunting, many can be diagnosed and repaired by competent DIY mechanics with the right tools and knowledge. For more complex issues, seeking assistance from a Volkswagen specialist is recommended, especially for critical components like the timing belt and cylinder head work.

Polo BAH Engine Rebuild Process

For those considering a complete engine rebuild, this detailed video shows the process of rebuilding a VW Polo BAH 1.6 engine:

FAQ

What is the engine code for the Polo 1.6 8V?

BAH is the engine code for the 1.6 liter 8-valve engine found in VW Polo models from approximately 2003 to 2008.

What spark plugs are recommended for the BAH engine?

NGK BKUR5ETC-10 spark plugs are specifically recommended for the BAH engine according to multiple forum sources.

How often should I change the timing belt on a Polo BAH engine?

The timing belt should be replaced every 60,000 km or 4 years, whichever occurs first. When replaced, the tensioner and water pump should also be changed.

Why does my Polo have a rough idle?

The most common cause of rough idle in the BAH engine is air leaks in the intake system, followed by spark plug lead issues, clogged breather hoses, and carbon buildup in the throttle body.

What causes cylinder #4 misfires in the BAH engine?

Cylinder #4 misfires are commonly caused by valve seal leakage (indicated by oil on spark plugs), burnt valves, or ignition component failures.

What is the most common cause of starting problems?

The most common causes include faulty coolant temperature sensors, crankshaft position sensors, and fuel pressure issues. Many BAH engines struggle with first-start-of-the-day syndrome, particularly when cold.

How serious is an oil pump failure in the BAH engine?

Oil pump failure is very serious as it can lead to inadequate lubrication and catastrophic engine damage. If you notice the oil pressure warning light, stop driving immediately.

What’s the average lifespan of a BAH engine?

With proper maintenance, the BAH 1.6 can last 200,000-250,000 km before requiring significant overhaul. Some well-maintained examples have exceeded 300,000 km.

Where can I find BAH engines if I need a replacement?

BAH engines are available as used/rebuilt units from various suppliers in South Africa. Always verify the engine code (BAH) for compatibility with your vehicle. [Sources: tonmaxenginesscc.co.za, tv2engineandgearbox.co.za]

References and Further Reading

Forums and Technical Discussions

• VW Club South Africa - BAH Engine Problems & Solutions
• VW Club South Africa - Polo BAH 1.6 Misfire Issues
• VW Club South Africa - Starting Problems Discussion
• VW Club South Africa - Oil System Issues
• VW Club South Africa - Timing Belt Replacement Guide

Technical Repair Guides

• Rough Idle Troubleshooting - VW Club South Africa
• Air Intake Leak Diagnosis - VW Club South Africa
• Spark Plug Recommendations for BAH Engine
• Complete Engine Rebuild Process - VW Club South Africa

Expert Q&A Resources

• 2008 Polo 1.6 8V BAH Engine Rough Idle Solutions - 4x4 Community
• VW Polo BAH Engine Operating Temperature Issues - Just Answer
• VW Polo 1.6 BAH Idling Problems - Just Answer
• Post-Overhaul Issues with VW Polo 1.6 BAH Engine - Just Answer
• VW Polo Erratic Idle Troubleshooting Guide - Fixya
