Nissan NP200 Gearbox Problems: JR5 Manual, Clutch & Costs (SA Guide)

Most Nissan NP200 “gearbox” trouble is not actually the gearbox at all. Because the NP200 is a South-African-built, Renault Logan–based bakkie, it runs the Renault JR5 / JH3 five-speed manual, a simple, cheap, well-understood box, and it is manual only, with no factory automatic to worry about. The faults owners report most are a soft or dead clutch pedal (usually a slave or master cylinder), crunchy shifts into second or reverse (worn synchros or old oil), a whine or pop-out in fifth (a known Renault J-series bearing fault), and clutch wear from load and stop-start traffic. Real gearbox failure does happen on high-kilometre units, but it is the exception. This guide walks through the common NP200 gearbox and clutch problems, what each tends to cost to sort in South Africa, and when it makes sense to fit a good used or reconditioned box rather than keep repairing.

The NP200 Uses a Renault Gearbox — Why That Matters

The NP200 is a half-tonne bakkie built in Rosslyn, and it is essentially a Nissan-badged version of the Renault Logan pick-up, so its running gear is Renault, not Nissan. The gearbox is the Renault JR5 (and the closely related JH3) five-speed manual, the same transaxle family found in the Renault Sandero, Logan, Clio and Duster, and shared across Dacia and even some Mercedes-badged vans. Knowing this changes how you shop: when a part or a whole gearbox is needed, you are looking at Renault-derived stock, not the rest of the Nissan range, so tell the supplier it is an NP200 specifically and they will match the correct Renault-based unit.

It also means the NP200 avoids the two things that make modern gearbox repairs expensive. There is no dual-clutch (DSG) box and no CVT in the range, so there is no mechatronic unit and no CVT belt to fail, and there is no dual-mass flywheel on the petrol 1.6, which is what makes a clutch job on many newer cars so costly. If you want the wider picture of how dual-clutch and CVT boxes differ from a simple manual like this, our rundown of common gearbox problems across other makes puts it in context.

[Back to top ↑]

Is It the Gearbox or the Clutch? (Usually the Clutch)

This is the single most useful thing to understand about the NP200. A large share of “my NP200 gearbox is stuffed” complaints are actually clutch hydraulic faults. Owners describe a pedal that suddenly goes soft or sinks to the floor, gears that will not select, and then everything working again a while later. That coming-and-going fault is classic of a failing clutch slave or master cylinder leaking past a seal, not a broken gearbox. On community threads, an NP200 with exactly these symptoms turned out to have a loose clutch cable/linkage and worn hydraulics, not internal gearbox damage — a cheap fix mistaken for an expensive one.

A quick self-test: if the pedal feels spongy, needs pumping, or drops to the floor and the trouble comes and goes, suspect the hydraulics first. If instead the clutch bites right at the top, slips on pull-away, or judders, the clutch itself is worn. Only if gears grind going in, the box whines, or it jumps out of gear is the fault likely inside the gearbox. Getting this right before you spend matters, because a slave cylinder is a fraction of the cost of a gearbox.

[Back to top ↑]

Common NP200 Gearbox Problems

Once you have ruled out the clutch hydraulics, the JR5/JH3 has a short and familiar list of genuine faults.

Crunchy or notchy shifting, especially into second or reverse and worse when the bakkie is cold, is usually worn synchromesh or simply old, broken-down gearbox oil that has lost its slipperiness. On a manual this box, a drain-and-refill with the correct grade of gearbox oil is cheap and always worth trying before condemning anything. Many “worn synchro” complaints ease off with fresh oil, and the shift getting easier as the box warms up points straight at fluid viscosity.

Whine or a jump out of fifth is the JR5’s best-known internal fault. On these Renault J-series boxes, the nut on the primary (input) shaft can slowly work loose, which lets the fifth-gear pinion develop play. You then hear a whine that rises with road speed and, in bad cases, fifth pops out under load. It is a documented pattern with a known fix: the nut is torqued correctly and the worn fifth-gear needle bearing is replaced. Reputable rebuilders list synchro-hub wear (1st/2nd, 3rd/4th and 5th) and fifth-gear failure as the usual reasons a JR5 comes in for a recon.

Clutch slip and judder come from a worn clutch plate. The good news on the petrol NP200 is there is no dual-mass flywheel, so a clutch job is a straightforward plate-cover-bearing kit rather than the pricier dual-mass replacement other vehicles need. Oil leaks from the input or output-shaft seals are common on high-kilometre units; reseal them early, because a box run low on oil is what turns a cheap seal into a worn, whining gearbox.

[Back to top ↑]

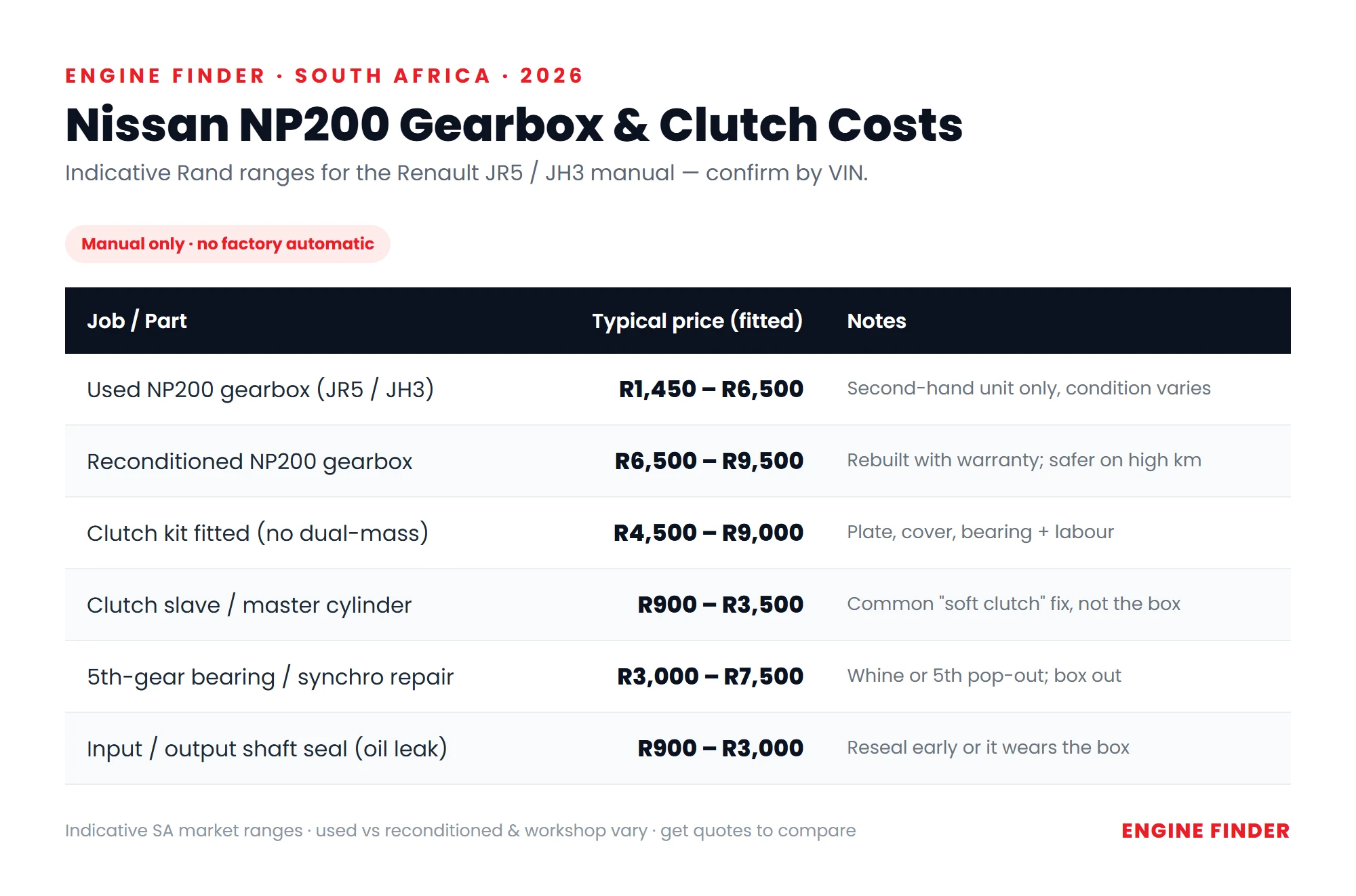

What an NP200 Gearbox & Clutch Costs in SA

Because the JR5/JH3 is a simple, Renault-shared box, the NP200 is one of the cheaper vehicles to sort. A used NP200 gearbox starts from around R1,450 and a reconditioned unit runs up to roughly R9,500, depending on condition and warranty. A recon box is the safer buy on a high-kilometre bakkie because it comes rebuilt with a warranty. A good used box is the budget route if the one you are replacing simply had an accident-damaged case or a single failed bearing.

On the clutch side, expect roughly R4,500 to R9,000 for a clutch kit fitted — no dual-mass flywheel keeps it affordable, and the gearbox has to come out to reach the clutch, so labour is a real part of the bill. If the fault is only the hydraulics, a slave or master cylinder is far cheaper, often well under R3,500. A fifth-gear bearing or synchro repair typically lands around R3,000 to R7,500 since the box has to come out, and an oil-seal reseal is roughly R900 to R3,000. These are indicative SA ranges — used-versus-reconditioned, kilometres and the workshop all move them, which is exactly why comparing a few quotes beats trusting one number. For the bigger picture on manual boxes across all makes, see our manual gearbox replacement cost guide.

[Back to top ↑]

Repair, Recon or Replace?

Once you have a diagnosis, the choice is between repairing what you have, fitting a reconditioned box, or dropping in a good used one. As a rough rule: a clutch, cylinder or seal fault is almost always worth repairing — the gearbox itself is fine. A fifth-gear bearing or a couple of worn synchros can be rebuilt, but once the rebuild quote climbs past what a sound used or reconditioned box costs, replacement wins. And if the box has been run low on oil and is whining, noisy and jumping out of gear, a replacement is the honest call.

Because NP200 gearboxes are cheap and easy to find, replacement often makes sense sooner than it would on a pricier vehicle. The smart move is to send one enquiry and compare a few used NP200 gearboxes side by side — prices vary a lot between suppliers, and because Engine Finder is a marketplace, verified NP200 gearbox suppliers across South Africa quote you back directly. If you are also chasing engine niggles on the same bakkie, our guide to common NP200 1.6i problems covers what else to watch on high-kilometre examples. And if the numbers no longer add up, it is worth checking what the bakkie is worth to sell for scrap before you spend.

[Back to top ↑]

Frequently Asked Questions

What gearbox does the Nissan NP200 use? The NP200 uses the Renault JR5 (and closely related JH3) five-speed manual, because the bakkie is built on the Renault Logan platform. It is manual only — there is no factory automatic NP200. The parts overlap with the Renault Sandero, Logan and Clio rather than the rest of the Nissan range, so tell suppliers it is an NP200 specifically so they source the correct Renault-derived unit.

Why does my NP200 clutch go soft and the gears won’t select? That coming-and-going pattern — pedal sinking to the floor, gears hard to select, then working again — is usually a clutch hydraulic fault, most often a failing slave or master cylinder leaking past a seal, rather than a broken gearbox. It is one of the cheapest things to fix on the NP200, so have the hydraulics checked and bled before anyone quotes you for a gearbox.

How much is a used NP200 gearbox in South Africa? A used NP200 (JR5/JH3) gearbox starts from around R1,450, while a reconditioned unit runs up to roughly R9,500 depending on condition and warranty. It is one of the more affordable gearboxes to replace because the box is a simple, widely available Renault-shared manual. Prices vary between suppliers, so submit one enquiry and compare a few quotes for your exact year and engine.

What causes the whine or fifth-gear pop-out on a JR5 gearbox? On these Renault J-series boxes the nut on the primary shaft can slowly work loose, which lets the fifth-gear pinion develop play — you get a whine that rises with speed and, in bad cases, fifth jumping out under load. The fix is to torque the nut correctly and replace the worn fifth-gear needle bearing. It is a known, repairable pattern rather than an automatic write-off.

Does the NP200 have a dual-mass flywheel? No — the petrol NP200 uses a conventional clutch and flywheel, not a dual-mass flywheel, which keeps clutch jobs cheaper than on many newer cars. A clutch replacement is a standard plate-cover-bearing kit; the main cost is the labour to drop the gearbox to reach it.

Can I fit a gearbox from a different NP200 or a Renault? Often yes, because the JR5/JH3 is shared with Renault models, but not blindly. The 1.6 petrol and the 1.5 dCi diesel differ, and the wrong unit can throw out ratios or clutch fitment even if it bolts up. Always match by VIN, model year and engine, and let the supplier confirm the correct unit before you buy.

Sources

1. Renault JR5 gearbox, WTC — JR5 as a manual box shared across Renault/Dacia/Nissan, and the synchro-hub and fifth-gear wear that drives reconditioning
2. If your fifth pops out please read this (J-gearboxes), Independent Renault Forums — the loose primary-shaft nut and fifth-gear needle-bearing fix on Renault J-series boxes
3. Nissan NP200 gears stick and clutch goes soft, Car Talk Community — owner diagnosis of an intermittent soft-clutch/won’t-select-gears fault traced to the clutch linkage and hydraulics, not the gearbox
4. Nissan NP200 problems, Used Nissan Parts — SA-market summary of NP200 gear-selection difficulty (worse when cold) and premature clutch wear under load
