Toyota Hilux Gearbox Problems: GD6, 4Y, Auto & Manual (SA Guide)

Most Toyota Hilux gearbox trouble comes down to a handful of familiar faults: a worn clutch and dual-mass flywheel on the manual, notchy or crunchy shifts from tired synchros, harsh or delayed changes on the automatic, and oil weeping from a tired seal. The good news is that the Hilux runs simple, proven drivetrains, a manual or a conventional torque-converter automatic, never a dual-clutch or a CVT, so most problems are repairable, and where they are not, a sound used or reconditioned box is usually far cheaper than a full rebuild. This guide walks through the common Hilux gearbox problems across the GD6 and older 4Y/D4D models, what each one tends to cost to sort in South Africa, and when it makes more sense to replace the box than to keep throwing money at it.

Common Hilux Gearbox Problems

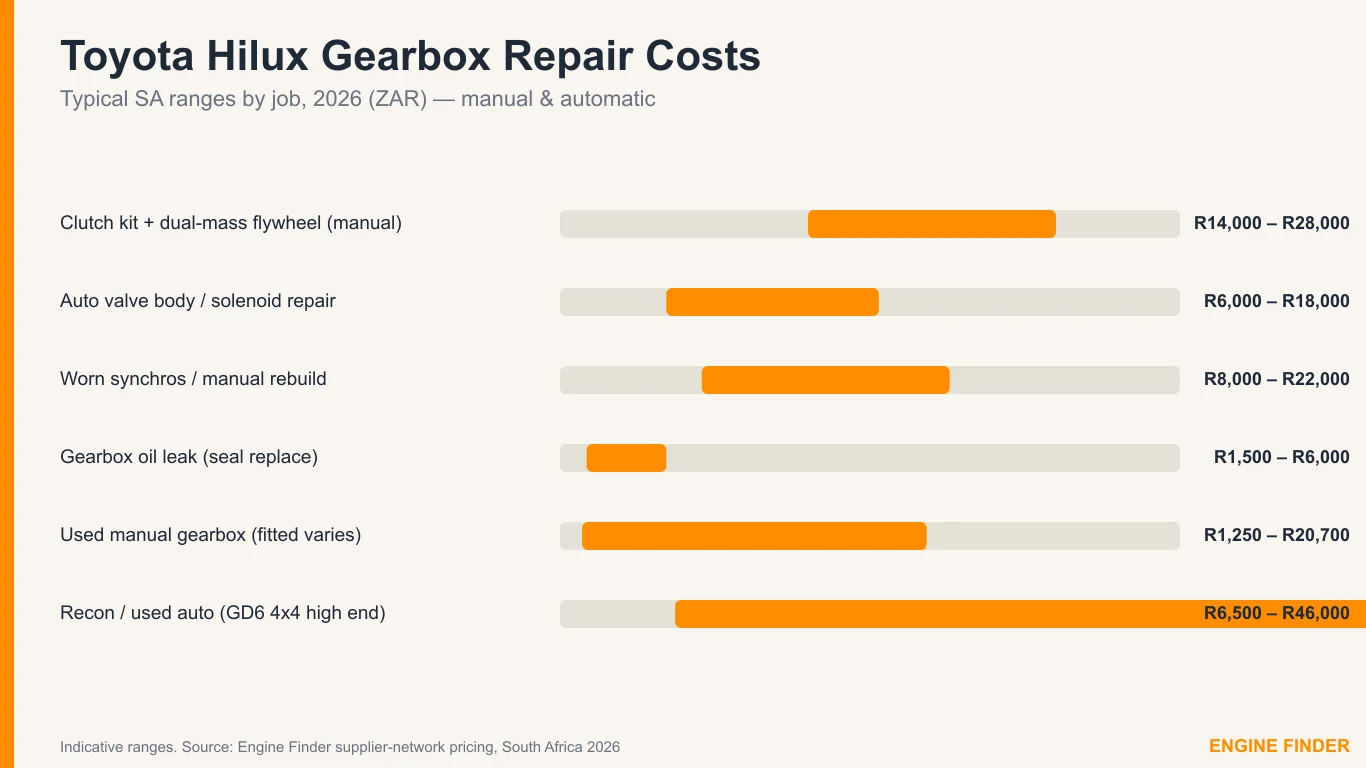

The Hilux is one of the toughest bakkies on South African roads, but the gearbox still wears like any other, and high-mileage, towing and bundu work all speed that up. On the manual, the single most common job is the clutch: owners notice slipping on pull-away, a juddering bite, or a clutch pedal that grabs right at the top. On the GD-series and many later models the clutch runs a dual-mass flywheel, which is why a clutch job on a Hilux costs noticeably more than on a small car, the flywheel often has to be replaced at the same time. A clutch kit plus dual-mass flywheel, fitted, typically runs R14,000 to R28,000 depending on model and workshop.

Next most common is notchy or crunchy shifting, especially into second or reverse. That is usually worn synchros or simply old, broken-down gearbox oil, a fluid change is cheap and worth trying first before condemning the box. On the automatic, the usual complaints are harsh or delayed shifts and the occasional slip, which often trace back to the valve body, a shift solenoid or tired ATF rather than a dead gearbox; a valve-body or solenoid repair lands around R6,000 to R18,000. Oil leaks from a rear main or output-shaft seal are common on older, high-kilometre units and run R1,500 to R6,000 to reseal. Left alone, a low oil level from a leak is what turns a cheap seal into an expensive rebuild.

[Back to top ↑]

Manual vs Automatic Hilux Gearboxes

A key thing to understand when you go shopping for a replacement: the Hilux only ever uses a manual or a conventional torque-converter automatic. Unlike a VW or Audi, there is no dual-clutch box and no CVT in the range, so you never have to worry about a separate mechatronic unit or a CVT belt, which keeps both repair costs and parts hunting simpler. That matters when you compare it against the dual-clutch and CVT confusion covered in our guide to common gearbox problems across other makes.

The manual is the workhorse and the cheaper box to live with, the main wear item is the clutch, and a good used manual gearbox is widely available. The automatic (the Aisin-built torque-converter unit on GD6 models, and older four-speed autos before it) is smoother and popular on family and towing Hiluxes, but it asks for clean ATF and decent cooling, especially if you tow. Whichever you have, give your supplier the model, year and engine so the replacement matches your bellhousing, ratios and 4x2-versus-4x4 spec exactly.

[Back to top ↑]

How a Hilux Clutch Job Is Done

Because the clutch is the number-one Hilux gearbox-related repair, it helps to see what the job actually involves, the gearbox has to come out to reach it, which is why labour is a big part of the bill.

GD6 vs Older Hilux (4Y / D4D) Gearboxes

The Hilux has run several drivetrain generations in South Africa, and the gearbox you are matching depends on the era. The older petrol Hiluxes (the 4Y 2.2/2.4 petrol era) used simple, durable five-speed manuals that are cheap and easy to find second-hand, these boxes rarely die of anything but neglect or a worn clutch. The D4D generation (the long-running 2.5 and 3.0 KD-series diesels, including the N70) brought stronger manuals and the four-speed automatic, and these are the high-kilometre workhorses you see everywhere on local roads.

The current GD6 generation (2.4 and 2.8 GD-6 diesel) runs a six-speed manual and the modern six-speed automatic. These are refined and strong, but the GD6 clutch with its dual-mass flywheel is the pricier one to replace, and the auto wants disciplined fluid changes if you tow. If you are also weighing up the engine side of a high-mileage GD6, our write-up on Toyota 2.8 GD6 engine problems covers what to watch there, a useful companion when you are deciding whether the whole bakkie is worth keeping.

[Back to top ↑]

Repair, Recon or Replace?

Once you have a diagnosis, the choice is usually between repairing the box you have, fitting a reconditioned unit, or dropping in a good used one. As a rough rule: a clutch, seal or solenoid fault is almost always worth repairing — the box itself is fine. Worn synchros or bearings can be rebuilt, but once the rebuild quote climbs past what a sound used or reconditioned box costs, replacement wins. And if the gearbox has been run low on oil and is whining, noisy and jumping out of gear, a replacement is the honest call.

A reconditioned box gives you a warranty and is the safer choice on a high-value GD6; a good used box is the budget route on an older D4D or 4Y. Either way, the smart move is to send one enquiry and compare a few used Toyota Hilux gearboxes side by side, prices vary a lot between suppliers, and Engine Finder is a marketplace, so verified Hilux gearbox suppliers across South Africa quote you back directly. If the bakkie is older and the numbers no longer make sense, it is also worth checking what it is worth to sell for scrap before you spend.

[Back to top ↑]

Frequently Asked Questions

Is the Hilux GD6 automatic reliable? Yes, the GD6 six-speed auto is a well-proven torque-converter box and not a troublesome dual-clutch unit. The main thing it asks for is clean ATF and sensible cooling, especially if you tow regularly. Most problems people blame on the gearbox are actually tired fluid or a valve-body issue, both of which are repairable without replacing the whole box.

How much does a Hilux clutch replacement cost in South Africa? Budget roughly R14,000 to R28,000 fitted for a clutch kit plus dual-mass flywheel on the diesel models, depending on the generation and whether you go to a dealer or an independent. Older petrol Hiluxes without a dual-mass flywheel are cheaper. The gearbox has to come out to reach the clutch, so labour is a meaningful part of the bill.

Can I fit a gearbox from a different Hilux year? Sometimes, but not blindly. Boxes differ between generations and between 4x2 and 4x4, and the wrong unit can throw out your gear ratios, speedo or clutch fitment even if it physically bolts up. Always match by VIN, model year and engine — give those details to the supplier so they confirm the correct unit before you buy.

Is towing bad for the Hilux automatic? Towing is not bad in itself, but it heats the ATF, and heat is what shortens an automatic’s life. If you tow often, change the fluid more frequently than the standard interval and make sure the gearbox cooler is in good order. Harsh shifts or a brief limp mode on long climbs are early warnings to check the fluid.

Is it the gearbox or the clutch? A useful first test: if the problem is slipping or juddering on pull-away and the bite point is high, it is usually the clutch. If gears crunch going in, the box whines, or it jumps out of gear, the trouble is inside the gearbox. A workshop scan and a road test will confirm which, worth doing before you commit to either repair, since the costs are very different.

Sources

1. Toyota Hilux, Wikipedia, model generations, engines and drivetrains
2. How a Car Works — How the gearbox works, manual and automatic gearbox fundamentals
3. RepairPal, Manual transmission clutch, clutch wear, symptoms and repair context
